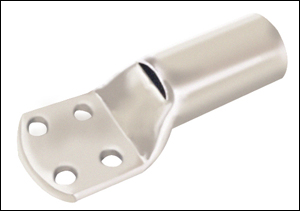

              Copper Compression Type Four Hole Tubular Terminal

Copper Compression Type Four Hole Tubular Terminal   Copper Compression Type Four Hole   Copper Compression Type Four Hole Tubular Terminal
Copper Compression Type Four Hole Tubular Terminal   Tubular Terminal   Copper Compression Type Four Hole Tubular Terminal

Copper Compression Type Four Hole Tubular Terminal

Copper Compression Type Four Hole Tubular Terminal
  • MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
  • COPPER LUGS & CABLE TERMINALS FROM 300 TO 1000 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
  • LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
  • CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
  • UL, CUL¬†CERTIFIED PRODUCT.

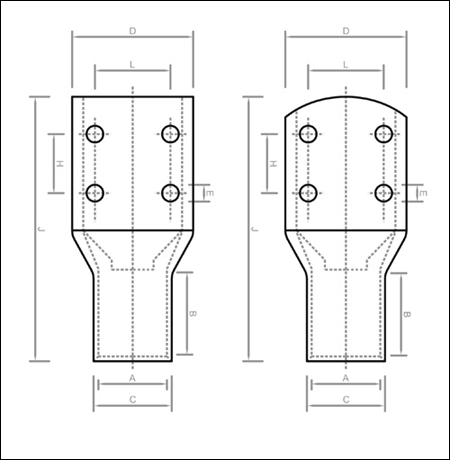

COPPER COMPRESSION TYPE FOUR HOLE TUBULAR TERMINAL

CAT.NO AREA MM2 E DIMENTIONS (MM2)
A C D B L H J
ZCT300 4E8 300 8.5 23.5 30 56 42 35 25 101
ZCT300 4E10 10.5 23.5 30 56 42 35 25 101
ZCT400 4E8 400 8.5 28.5 36.5 56 44 35 25 114
ZCT400 4E10 10.5 28.5 36.5 56 44 35 25 114
ZCT500 4E8 500 8.5 30 39 56 48 35 25 124
ZCT500 4E10 10.5 30 39 56 48 35 25 124
ZCT630 4E8 630 8.5 35 45 65 56 35 25 144
ZCT630 4E10 10.5 35 45 65 56 35 25 144
ZCT800 4E8 800 8.5 35 45 63.8 58 35 25 148
ZCT800 4E10 8.5 35 45 63.8 58 35 25 148
ZCT1000 4E8 1000 10.5 43 56.2 78.5 90 35 25 250
ZCT1000 4E10 10.5 43 56.2 78.5 90 35 25 250

Wire Terminals, Wiring Terminal Block, Electrical Terminal Block, Ring Terminals, Electrical Wire Connectors, Terminal Blocks Electrical, Wire Terminal Connectors, Electrical Terminal Connectors, Wire Connectors Terminals, Din Rail Terminal Blocks, Terminator, Battery Terminal, Barrier Terminal Block, Cable Lugs, Terminal Block, Din Rail Terminal Block, Phoenix Terminal Blocks, Pluggable Terminal Block, Wire Connector, Electrical Terminals Related words : Wire Terminals, Wiring Terminal Block, Electrical Terminal Block, Ring Terminals, Electrical Wire Connectors, Terminal Blocks Electrical, Wire Terminal Connectors, Electrical Terminal Connectors, Wire Connectors Terminals, Din Rail Terminal Blocks, Terminator, Battery Terminal, Barrier Terminal Block, Cable Lugs, Terminal Block, Din Rail Terminal Block, Phoenix Terminal Blocks, Pluggable Terminal Block, Wire Connector, Electrical Terminals
Please contact us for all your needs of

Copper Compression Type Four Hole Tubular Terminal

at best prices from india. We are the biggest Indian manufacturers exporters of

Copper Compression Type Four Hole Tubular Terminal


Twin Cord End Terminal Insulated Ferrule Twin Cord End Terminal Insulated Ferrule Crimping Type Aluminium Lugs Crimping Type Aluminium Lugs
