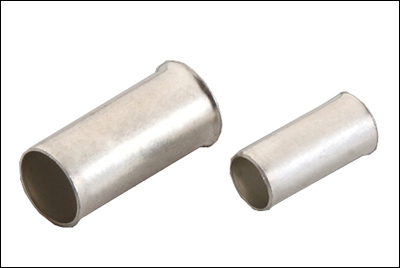

 Copper End Sealing Ferrule
- MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
- COPPER LUGS & CABLE TERMINALS FROM 0.5 TO 16 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
- LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
- CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
|
| COPPER END SEALING FERRULES |
| |
| CAT.NO |
AREA MM2 |

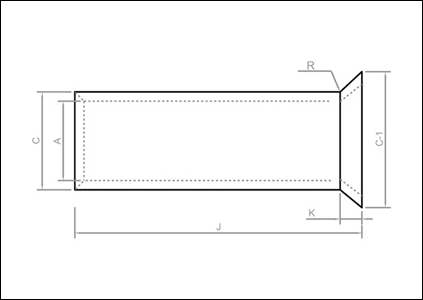

DIMENTIONS (MM2) |
| A |
C |
C1 +0 -.2 |
K (MAX.) |
R (MIN.) |
J ±0.4 |
|
| ZSF-508 |
0.5 |
1.0-1.1 |
1.4-1.5 |
2.1 |
0.7 |
0.8 |
6 |
| ZSF-509 |
0.75 |
1.4-1.5 |
1.8-1.9 |
2.5 |
0.7 |
0.8 |
6 |
| ZSF-510 |
1.0 |
1.6-1.7 |
2.0-2.1 |
2.7 |
0.7 |
0.8 |
6 |
| ZSF-511 |
1.0 |
1.6-1.7 |
2.0-2.1 |
2.7 |
0.7 |
0.8 |
10 |
| ZSF-512 |
1.5 |
1.8-1.9 |
2.2-2.3 |
2.9 |
1.0 |
1.2 |
7 |
| ZSF-513 |
1.5 |
1.8-1.9 |
2.2-2.3 |
2.9 |
1.0 |
1.2 |
10 |
| ZSF-514 |
2.5 |
2.3-2.4 |
2.7-2.8 |
3.5 |
1.0 |
1.2 |
7 |
| ZSF-515 |
2.5 |
2.3-2.4 |
2.7-2.8 |
3.5 |
1.0 |
1.2 |
12 |
| ZSF-516 |
4 |
2.8-2.9 |
3.2-3.3 |
4.0 |
1.0 |
1.2 |
9 |
| ZSF-517 |
4 |
2.8-2.9 |
3.2-3.3 |
4.0 |
1.0 |
1.2 |
12 |
| ZSF-518 |
6 |
3.7-3.8 |
4.1-4.2 |
4.8 |
1.0 |
1.2 |
10 |
| ZSF-519 |
6 |
3.7-3.8 |
4.1-4.2 |
4.8 |
1.0 |
1.2 |
12 |
| ZSF-520 |
6 |
3.7-3.8 |
4.1-4.2 |
4.8 |
1.0 |
1.2 |
15 |
| ZSF-521 |
10 |
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
1.2 |
12 |
| ZSF-522 |
10 |
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
1.2 |
15 |
| ZSF-523 |
10 |
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
1.2 |
18 |
| ZSF-524 |
16 |
5.9-6.0 |
6.3-6.4 |
7.5 |
1.5 |
1.6 |
12 |
| ZSF-525 |
16 |
5.9-6.0 |
6.3-6.4 |
7.5 |
1.5 |
1.6 |
15 |
| ZSF-526 |
16 |
5.9-6.0 |
6.3-6.4 |
7.5 |
1.5 |
1.6 |
18 |
|
|
Please contact us for all your needs of Copper End Sealing Ferrule at best prices from india. We are the biggest Indian manufacturers exporters of Copper End Sealing Ferrule
|
