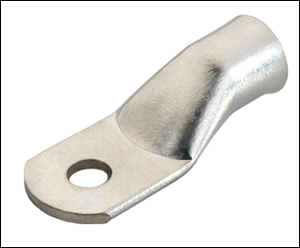

 Soldering Type Copper
Tubular Lugs Heavy Duty
- MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
- COPPER LUGS & CABLE TERMINAL FROM 15 TO 1000 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
- LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
- CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
- UL, CUL CERTIFIED PRODUCT.
|
| SOLDERING TYPE COPPER TUBULAR CABLE LUGS HEAVY DUTY |
| |
| CAT.NO |
AMPS |

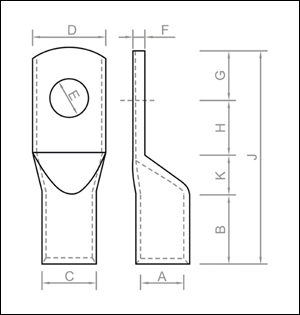

DIMENTIONS (MM2) |
| E |
A |
C |
D |
F |
B |
K |
H |
G |
J |
| ZCTS-6 |
15 |
5.1 |
4.8 |
6.2 |
9 |
1.4 |
10 |
3 |
6 |
5 |
24 |
| ZCTS-7 |
30 |
7.1 |
6.4 |
8.0 |
12 |
1.6 |
13 |
4 |
10 |
6 |
33 |
| ZCTS-8 |
60 |
10.3 |
9.5 |
11.3 |
17 |
1.8 |
14 |
8 |
13 |
9 |
44 |
| ZCTS-9 |
100 |
11.9 |
11.9 |
13.9 |
21 |
2.0 |
19 |
9 |
14 |
13 |
55 |
| ZCTS-10 |
150 |
13.5 |
14.3 |
17.1 |
25 |
2.8 |
22 |
10 |
16 |
14 |
62 |
| ZCTS-11 |
200 |
13.5 |
16.7 |
19.9 |
29 |
3.2 |
29 |
11 |
21 |
17 |
78 |
| ZCTS-12 |
300 |
16.7 |
20.6 |
24.2 |
36 |
3.6 |
32 |
13 |
21 |
20 |
86 |
| ZCTS-13 |
400 |
16.7 |
23.8 |
27.8 |
41 |
4.0 |
38 |
14 |
24 |
24 |
100 |
| ZCTS-14 |
500 |
19.8 |
26.2 |
31.4 |
46 |
5.2 |
44 |
16 |
24 |
27 |
111 |
|
|
Please contact us for all your needs of Soldering Type Copper Tubular Lugs Heavy Duty at best prices from india. We are the biggest Indian manufacturers exporters of Soldering Type Copper Tubular Lugs Heavy Duty
|
