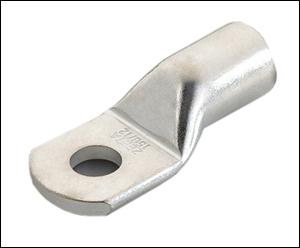

 Copper Cable Lugs - Single Hole
- MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
- COPPER LUGS & CABLE TERMINALS FROM 2.5 TO 1000 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
- LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
- CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
- UL, CUL CERTIFIED PRODUCT.
|
| COPPER COMPRESSION CABLE LUGS - SINGLE HOLE |
| |
| CAT.NO |
AREA MM2 |

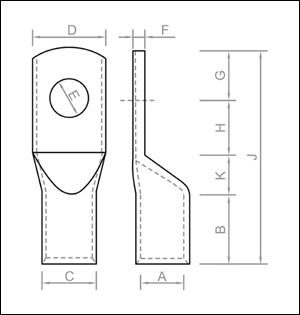

DIMENTIONS (MM2) |
| E |
A |
C |
D |
F |
B |
K |
H |
G |
J |
| ZCT-05 |
2.5 |
5.2 |
2.0 |
3.7 |
9 |
1.0 |
7 |
3 |
5 |
5 |
20 |
| ZCT-06 |
4 |
6.5 |
3.1 |
4.8 |
11 |
1.0 |
7 |
3 |
6 |
6 |
22 |
| ZCT-07 |
6 |
6.5 |
3.8 |
5.5 |
11 |
1.0 |
9 |
3 |
6 |
6 |
24 |
| ZCT-08 |
10 |
6.5 |
4.4 |
6.2 |
11 |
1.3 |
9 |
3 |
6 |
6 |
24 |
| ZCT-09 |
16 |
6.5 |
5.3 |
7.1 |
11 |
1.6 |
12 |
4 |
8 |
6 |
30 |
| ZCT-10 |
25 |
6.5 |
7.0 |
9.0 |
13 |
2.0 |
12 |
5 |
12 |
8 |
37 |
| ZCT-11 |
35 |
6.5 |
8.0 |
10.0 |
15 |
2.0 |
12 |
5 |
12 |
8 |
37 |
| ZCT-12 |
35 |
8.2 |
8.0 |
10.0 |
15 |
2.0 |
12 |
5 |
12 |
8 |
37 |
| ZCT-13 |
50 |
6.5 |
9.2 |
11.2 |
16 |
2.0 |
16 |
8 |
12 |
9 |
45 |
| ZCT-14 |
50 |
8.2 |
9.2 |
11.2 |
16 |
2.0 |
16 |
8 |
12 |
9 |
45 |
| ZCT-15 |
50 |
10.2 |
9.2 |
11.2 |
16 |
2.0 |
16 |
8 |
12 |
9 |
45 |
| ZCT-16 |
70 |
8.2 |
11.6 |
13.8 |
20 |
2.3 |
18 |
10 |
15 |
13 |
56 |
| ZCT-17 |
70 |
10.2 |
11.6 |
13.8 |
20 |
2.3 |
18 |
10 |
15 |
13 |
56 |
| ZCT-18 |
70 |
12.7 |
11.6 |
13.8 |
20 |
2.3 |
18 |
10 |
15 |
13 |
56 |
| ZCT-19 |
95 |
10.2 |
12.8 |
15.6 |
23 |
2.8 |
20 |
10 |
15 |
13 |
58 |
| ZCT-20 |
95 |
12.7 |
12.8 |
15.6 |
23 |
2.8 |
20 |
10 |
15 |
13 |
58 |
| ZCT-21 |
120 |
10.2 |
14.8 |
17.8 |
26 |
3.0 |
22 |
10 |
16 |
14 |
62 |
| ZCT-22 |
120 |
12.7 |
14.8 |
17.8 |
26 |
3.0 |
22 |
10 |
16 |
14 |
62 |
| ZCT-23 |
120 |
16.2 |
14.8 |
17.8 |
26 |
3.0 |
22 |
10 |
16 |
14 |
62 |
| ZCT-24 |
150 |
10.2 |
16.0 |
19.6 |
28 |
3.6 |
26 |
11 |
18 |
15 |
70 |
| ZCT-25 |
150 |
12.7 |
16.0 |
19.6 |
28 |
3.6 |
26 |
11 |
18 |
15 |
70 |
| ZCT-26 |
150 |
16.2 |
16.0 |
19.6 |
28 |
3.6 |
26 |
11 |
18 |
15 |
70 |
| ZCT-27 |
185 |
12.7 |
18.0 |
22.0 |
32 |
4.0 |
28 |
13 |
21 |
21 |
83 |
| ZCT-28 |
185 |
16.2 |
18.0 |
22.0 |
32 |
4.0 |
28 |
13 |
21 |
21 |
83 |
| ZCT-231 |
225 |
16.2 |
20.0 |
24.0 |
35 |
4.0 |
32 |
15 |
24 |
24 |
95 |
| ZCT-29 |
240 |
16.2 |
22.0 |
26.0 |
38 |
4.0 |
34 |
15 |
24 |
24 |
97 |
| ZCT-30 |
240 |
20.3 |
22.0 |
26.0 |
38 |
4.0 |
34 |
15 |
24 |
24 |
97 |
| ZCT-31 |
300 |
16.2 |
24.0 |
28.7 |
42 |
4.7 |
36 |
16 |
25 |
25 |
103 |
| ZCT-32 |
300 |
20.3 |
24.0 |
28.7 |
42 |
4.7 |
36 |
16 |
25 |
25 |
103 |
| ZCT-33 |
400 |
20.3 |
28.0 |
33.2 |
49 |
5.2 |
44 |
18 |
27 |
27 |
116 |
| ZCT-34 |
500 |
20.3 |
30.0 |
36.0 |
53 |
6.0 |
48 |
18 |
27 |
27 |
120 |
| ZCT-35 |
630 |
20.3 |
35.0 |
41.5 |
61 |
6.5 |
53 |
20 |
33 |
31 |
137 |
| ZCT-062 |
800 |
|
39.0 |
46.3 |
67 |
7.3 |
68 |
25 |
38 |
37 |
165 |
| ZCT-076 |
1000 |
|
43.0 |
53.8 |
76 |
10.8 |
90 |
30 |
45 |
45 |
210 |
|
|
Please contact us for all your needs of Copper Cable Lugs - Single Hole at best prices from india. We are the biggest Indian manufacturers exporters of Copper Cable Lugs - Single Hole
|
