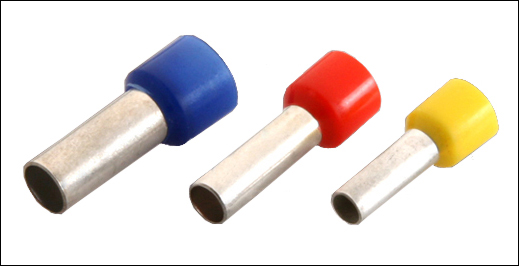

 Copper Insulated Ferrule
- MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
- COPPER LUGS & CABLE TERMINALS FROM 0.5 TO 16 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
- LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
- CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
|
| COPPER INSULATED FERRULES |
|
| CAT.NO |
AREA MM2 |
COLOUR |

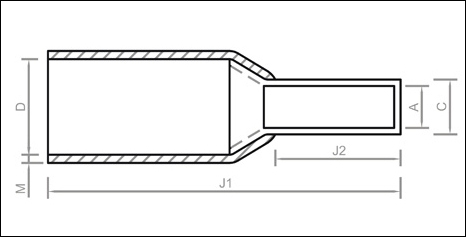

DIMENTIONS (MM2) |
| J2 |
A |
C |
D |
M |
J1 |
| ZSFI-508 L6 |
0.5 |
WHITE |
6 |
1.1 |
1.5 |
2.6 |
0.5 |
12 |
| ZSFI-508 L8 |
0.5 |
WHITE |
8 |
1.1 |
1.5 |
2.6 |
0.5 |
14 |
| ZSFI-508 L10 |
0.5 |
WHITE |
10 |
1.1 |
1.5 |
2.6 |
0.5 |
16 |
| ZSFI-509 L6 |
0.75 |
BLUE |
6 |
1.5 |
1.9 |
2.8 |
0.5 |
12 |
| ZSFI-509 L8 |
0.75 |
BLUE |
8 |
1.5 |
1.9 |
2.8 |
0.5 |
14 |
| ZSFI-509 L10 |
0.75 |
BLUE |
10 |
1.5 |
1.9 |
2.8 |
0.5 |
16 |
| ZSFI-509 L12 |
0.75 |
BLUE |
12 |
1.5 |
1.9 |
2.8 |
0.5 |
18 |
| ZSFI-510 L6 |
1.0 |
RED |
6 |
1.7 |
2.1 |
3.3 |
0.5 |
12 |
| ZSFI-510 L8 |
1.0 |
RED |
8 |
1.7 |
2.1 |
3.3 |
0.5 |
14 |
| ZSFI-511 L10 |
1.0 |
RED |
10 |
1.7 |
2.1 |
3.3 |
0.5 |
16 |
| ZSFI-511 L12 |
1.0 |
RED |
12 |
1.7 |
2.1 |
3.3 |
0.5 |
18 |
| ZSFI-512 L8 |
1.5 |
BLACK |
8 |
1.9 |
2.3 |
3.5 |
0.5 |
14 |
| ZSFI-513 L10 |
1.5 |
BLACK |
10 |
1.9 |
2.3 |
3.5 |
0.5 |
16 |
| ZSFI-513 L12 |
1.5 |
BLACK |
12 |
1.9 |
2.3 |
3.5 |
0.5 |
18 |
| ZSFI-513 L18 |
1.5 |
BLACK |
18 |
1.9 |
2.3 |
3.5 |
0.5 |
24 |
| ZSFI-514 L8 |
2.5 |
GRAY |
8 |
2.4 |
2.8 |
4.2 |
0.5 |
14 |
| ZSFI-514 L10 |
2.5 |
GREY |
10 |
2.4 |
2.8 |
4.2 |
0.5 |
16 |
| ZSFI-515 L12 |
2.5 |
GRAY |
12 |
2.4 |
2.8 |
4.2 |
0.5 |
18 |
| ZSFI-515 L15 |
5 |
GREY |
15 |
2.4 |
2.8 |
4.2 |
0.5 |
21 |
| ZSFI-515 L18 |
2.5 |
GRAY |
18 |
2.4 |
2.8 |
4.2 |
0.5 |
24 |
| ZSFI-516 L8 |
4 |
ORANGE |
8 |
2.9 |
3.3 |
4.8 |
0.5 |
14 |
| ZSFI-516 L10 |
4 |
ORANGE |
10 |
2.9 |
3.3 |
4.8 |
0.5 |
16 |
| ZSFI-517 L12 |
4 |
ORANGE |
12 |
2.9 |
3.3 |
4.8 |
0.5 |
18 |
| ZSFI-517 L18 |
4 |
ORANGE |
18 |
2.9 |
3.3 |
4.8 |
0.5 |
24 |
| ZSFI-518 L10 |
6 |
GREEN |
10 |
3.8 |
4.2 |
6.3 |
0.5 |
18 |
| ZSFI-519 L12 |
6 |
GREEN |
12 |
3.8 |
4.2 |
6.3 |
0.5 |
20 |
| ZSFI-520 L15 |
6 |
GREEN |
15 |
3.8 |
4.2 |
6.3 |
0.5 |
23 |
| ZSFI-520 L18 |
6 |
GREEN |
18 |
3.8 |
4.2 |
6.3 |
0.5 |
26 |
| ZSFI-521 L12 |
10 |
BROWN |
12 |
4.7 |
5.1 |
7.6 |
0.7 |
22 |
| ZSFI-522 L15 |
10 |
BROWN |
15 |
4.7 |
5.1 |
7.6 |
0.7 |
25 |
| ZSFI-523 L18 |
10 |
BROWN |
18 |
4.7 |
5.1 |
7.6 |
0.7 |
28 |
| ZSFI-524 L12 |
16 |
WHITE |
12 |
6.0 |
6.4 |
8.8 |
0.7 |
24 |
| ZSFI-525 L15 |
16 |
WHITE |
15 |
6.0 |
6.4 |
8.8 |
0.7 |
27 |
| ZSFI-526 L18 |
16 |
WHITE |
18 |
6.0 |
6.4 |
8.8 |
0.7 |
30 |
|
|
