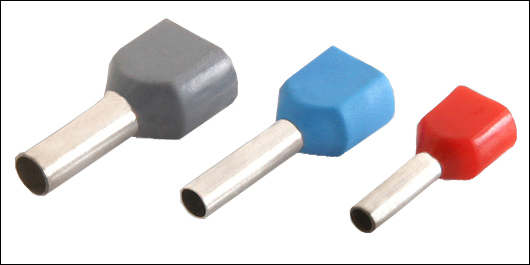

 Twin Cord End Terminal
Insulated Ferrule
- MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
- COPPER LUGS & CABLE TERMINALS FROM 0.5 TO 16 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
- LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
- CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
|

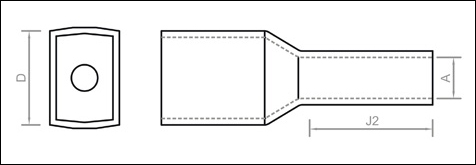

| TWIN CORD END TERMINAL INSULATED FERRULES |
| |
| CAT.NO |
AREA MM2 |
COLOUR |
DIMENTIONS (MM2) |
| J2 |
A |
D |
| ZSFT-508L8 |
0.5 |
WHITE |
8 |
1.5 |
5.6 |
| ZSFT-509L8 |
0.75 |
GREY |
8 |
1.8 |
6.2 |
| ZSFT-509L10 |
0.75 |
GREY |
10 |
1.8 |
6.2 |
| ZSFT-510L8 |
1 |
RED |
8 |
2 |
6 |
| ZSFT-511L10 |
1 |
RED |
10 |
2 |
6 |
| ZSFT-512L8 |
1.5 |
BLACK |
8 |
2.3 |
7.2 |
| ZSFT-512L10 |
1.5 |
RED |
10 |
2.3 |
7.2 |
| ZSFT-513L12 |
1.5 |
BLACK |
12 |
2.3 |
7.2 |
| ZSFT-514L6 |
2.5 |
BLUE |
6 |
2.9 |
8.5 |
| ZSFT-514L8 |
2.5 |
BLUE |
8 |
2.9 |
8.5 |
| ZSFT-515L10 |
2.5 |
BLUE |
10 |
2.9 |
8.5 |
| ZSFT-515L12 |
2.5 |
BLUE |
12 |
2.9 |
8.5 |
| ZSFT-517L12 |
4 |
GREY |
12 |
3.8 |
9.2 |
| ZSFT-520L14 |
6 |
YELLOW |
14 |
4.9 |
10.5 |
| ZSFT-522L14 |
10 |
RED |
14 |
6.5 |
13 |
| ZSFT-525L14 |
16 |
BLUE |
14 |
8.3 |
19.3 |
|
|
Please contact us for all your needs of Twin Cord End Terminal Insulated Ferrule at best prices from india. We are the biggest Indian manufacturers exporters of Twin Cord End Terminal Insulated Ferrule
|
